Patterns for Infrastructure-as-code

• Bio: Developer, coach, speaker, author
• Company: Aestas/IT (http://aestasit.com)

• E-mail: andrey@aestasit.com
• Linkedin: http://www.linkedin.com/in/andreyadamovich
• Lanyrd: http://lanyrd.com/profile/andrey-adamovich
• GitHub: https://github.com/aadamovich
• SO: http://stackoverflow.com/users/162792/andrey-adamovich
• Twitter: @codingandrey, @aestasit

• Collection of patterns (and antipatterns) for
  representing your infrastructure-as-code.
• Work in progress (never done).
• Feedback is more than welcome!

Infrastructure-as-Code (IaC) is a type of IT infrastructure
that operations teams can automatically manage and provision
through code, rather than using a manual process.
Infrastructure-as-Code is sometimes referred to as programmable infrastructure.

• Image defitions
• Provisioning declarations
• Automation scripts

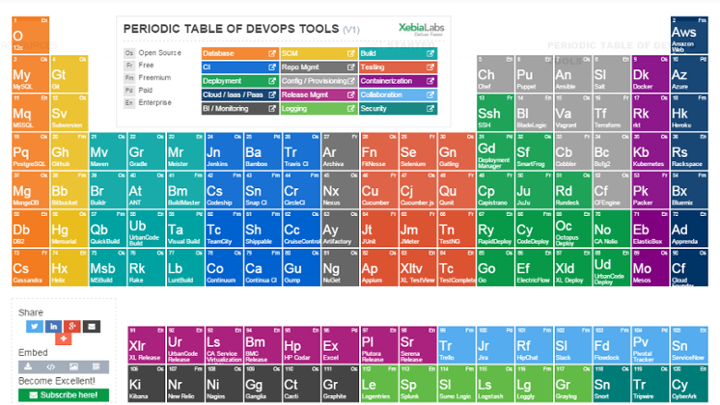

• Image creation/management: Packer, Docker, AWS AMI/EC2 etc.
• State declarations: Puppet, Chef, Ansible etc.
• Automation blocks: SSH, API + <your favorite scripting language>

• Manually crafted base infrastructure server image that nobody dares or knows how to change.

• Operating system distributions (*.iso).
• Base provider images.
• Packer can create images for many virtualization software and cloud providers.
• Docker can build and package containers as images for distribution.

• Everything is code, but secrets are not!
• Secrets should reside in a separate location!
• Secrets should be injected on the very last stage of "deploying" your code.
• In this way the actualy code still remains sharable.

• Shared secrets must be encrypted!
• Well, all stored secrets must be encrypted!
• Decryption password is shared through a different channel.

• Encrypt hard drives
• Encrypt files in version control

• GPG/PGP:

  > cd <path-to-your-repo>/
  > gpg --encrypt sensitive_file
  > git add sensitive_file
  > git commit -m 'Add encrypted version of a sensitive file'


• OpenSSL + Transcrypt (https://github.com/elasticdog/transcrypt):

  > cd <path-to-your-repo>/
  > transcrypt
  > echo 'sensitive_file  filter=crypt diff=crypt' >> .gitattributes
  > git add .gitattributes sensitive_file
  > git commit -m 'Add encrypted version of a sensitive file'


• "It's OK for now" does not really work!
• It creates a culture of security being not so important!
• It may alienate your Dev and Ops teams, because they can't share code due to hard-coded secrets!

• Nobody knows your domain better than you!
• You can write your own DSL or you can leverage existing tools.
• The main thing is to group infrastructure configuration into reusable components.
• That's what we do with application code, that's what we should do with IaC!

system1 {
  http_proxy {
    cache=true
    http_application {
      param1=A
    }
  }
  database {
    memory=3GB
  }

• Bash, Perl, Python, Groovy,... anything works.
• Though, Puppet, Chef, Ansible provide facilities to define and group abstractions.

• To configure package X, you keep all configuration files it needs within your "code".
• You use provisioning tool abstractions to copy every single file onto the target system.

• nginx.conf
• mime.conf
• servers.conf
• params.conf
• nginx.pp | nginx.rb | nginx.yml

• Well, there are much simpler ways to copy files.
• You actually hide your intent and the goal of your configuration.
• File and package are not always the right abstractions.

• Upstream Server
• Virtual Host
• Static Directory
• System Wide Setting

• Many packages will already be on the system in their default state.
• Instead of duplicating default state in your code, you can only define an incremental change.

• Disallow root access on the system
• Set SELinux into permissive mode
• Set default caching timeout in Nginx

• Generic: sed, perl, regular expressions
• Puppet: file_line, augeas
• Ansible: lineinfile, replace
• Chef: ruby

• Compose your configuration of several template or API call blocks.
• Expose abstractions through configuration blocks.

• Puppet: concat module
• Ansible: assemble module
• Chef: partials

• Part or all of system configuration is distributed through auto-discovery mechanism.
• This cleans your IaC from storing specifics. Define keys instead of values.
• Basically, "convention over configuration" for your cluster.

• Etcd (https://github.com/coreos/etcd)
• Eureka (https://github.com/Netflix/eureka)
• ZooKeeper (https://zookeeper.apache.org/)
• Consul (http://www.consul.io/)

• Package your application in the most approriate format that is ready for the most hassle-free deployment.
• Publish it to artifact repository (Maven, RubyGems, Yum, Apt...).
• Artifact repository serves as a layer of isolation between pipelines.
• Reduces amount of code needed on later stages of configuration management.

1. jar|gem|pyc|...
2. tar.gz|tar.bz2|zip|...
3. rpm|deb|msi|...
4. server|container image

• Data has different lifecycle. It's more dynamic.
• Data changes more often than code.
• Example 1: use your provisioning tool to define organization users.
• Example 2: manifest that lists all your 500 servers.

• Useful when number of managed items exceeds certain amount.
• Data file (Text, Excel, etc.)
• Database (PuppetDB etc.)
• Service API

• Each tool/language out there has one.
• Nobody canceled clean code teachings.
• Reading, writing and eventually merging code is always easier if people follow the same formatting and styling.

• Code must be in Version Control.
• Lack of experience with new tool may Code Reviews.
• Yes, there are tools for Static Code Analysis even for IaC products.
• Unit testing does not make a lot of sense for IaC, but Integration Testing does.
• Applying all the above techniques gives the best QA result for any code.

• Since it's code, then developers can, should and will write it without involving operations.
• DevOps is a brilliant term, since it emphasises that all starts with developers.
• But one should not forget about those guys who actually keep the systems running.

• Metrics that your application provides evolve with your application.
• New components, new endpoints, new KPIs...
• Keep monitoring configuration close to the code!
• Or make it auto-discoverable and visible!

• Monitoring software has configuration files and/or an API that can be programmed.
• There a plenty of libraries that allow making monitoring a built-in feature of your application.

• DropWizard Metrics
• Hystrix
• StageMonitor

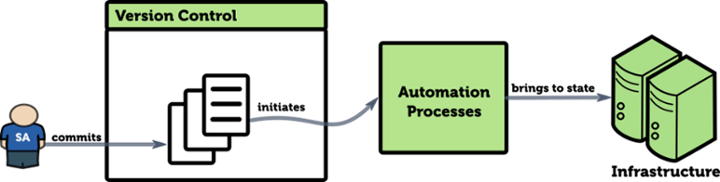

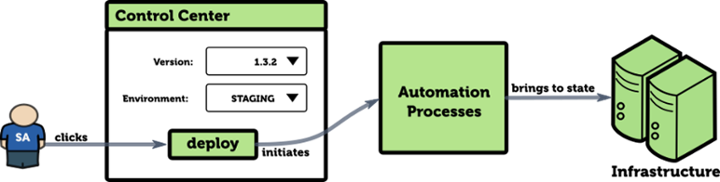

• Repeatable things live well in scripts.
• Scripts can (and will) be well executed by your CI server (or any other UI you can build around your automation).
• Effectively, that server becomes your "control panel".
• Keep configuration of your "control panel" in version control.

• Jenkins API (https://jenkinsapi.readthedocs.org/en/latest/)
• Job DSL (https://github.com/jenkinsci/job-dsl-plugin)
• Gradle plugin (https://github.com/ghale/gradle-jenkins-plugin)

• RunDeck API (http://rundeck.org/2.5.3/api/index.html)
• RunDeck Command Line (http://rundeck.org/docs/man1/index.html)

• There is a lot of code out there.
• Private fork may work as a short-term solution.
• Do not keep your updates only to yourself. Share them back.

• It's better to create a wrapper.
• This simplifies upgrades.
• And tracebilty.

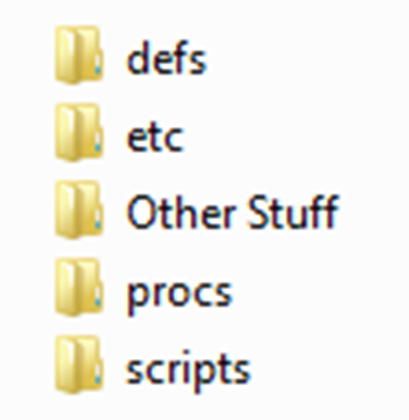

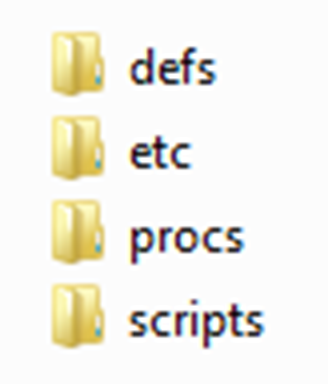

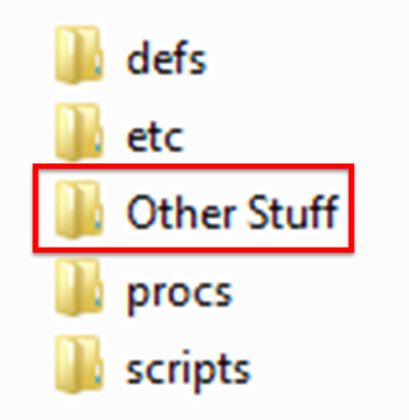

• Team members do not fully understand the logic behind code organization.
• They still are eager to contribute, but when they actually do, they break it.

• Language or API that allows to query your infrastructure state (real time or last available report).
• Examples: AWS EC2 API, PuppetDB, MCollective, Salt

• It's quite common that Ops team have been given or have created a bunch of documents describing procedures for system operations.
• Code can do better!
• It happens that writing those documents take as much time as writing and testing code that implement the same guide lines.
• Automating procedures can reduce the amount of documentation needed or eliminate the documentation completely.

• Define template from which you can create a fully working environment.
• It gives scaling.
• It gives isolation.
• It gives flexibilty.

• Vagrant
• AWS Cloud Formation
• Docker and Docker Compose
• Kubernetes API

• Well, it's possible to create mess out of anything.

• Pattern: Reproducable Images
• Pattern: Secret Isolating
• Pattern: Ecrypted Secrets
• Pattern: Infrastructure Component DSL
• Pattern: Incremental Configuration
• Pattern: Configuration Composition
• Pattern: Configuration Discovery
• Pattern: Extra-Packaging Code

• Pattern: Configuration Data Source
• Pattern: Metrics as Code
• Pattern: Control Panel as Code
• Pattern: Community Module Wrapper
• Pattern: Infrastructure Query Language
• Pattern: Automation over Documentation
• Pattern: Environment Template

• Antipattern: Golden Image
• Antipattern: Postponing Secret Isolation
• Antipattern: "Fancy-File-Copying"
• Antipattern: Data as Code
• Antipattern: Ignoring Styling Guidelines

• Antipattern: Not Treating IaC as Code
• Antipattern: DevOoops
• Antipattern: Private Fork of a Community Module
• Antipattern: "Other Stuff"
• Antipattern: Big Ball of Mud

• Write a blog post!
• Share a tweet with @codingandrey or #iacpatterns.
• Or just write me to andrey@aestasit.com.
